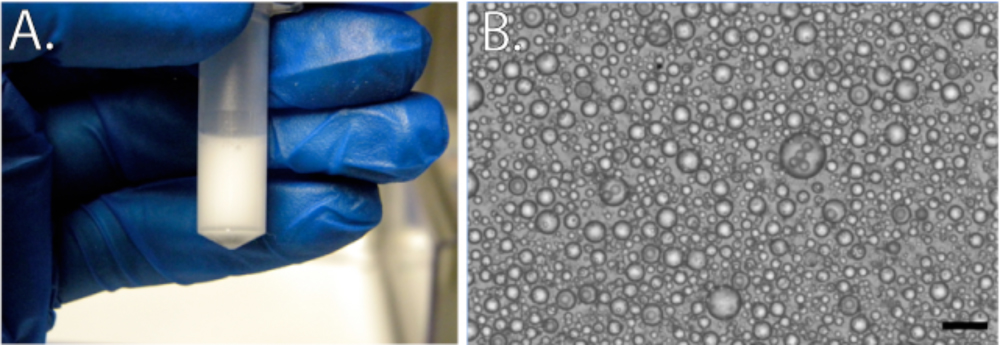

Chapter 11. Figure 1. Emulsified PCR reactions generated by horizontal agitation of a stainless steel mixing ball. A. Emulsified reaction in 1.5 mL tube prior to dispensation into PCR tubes. B. Same emulsion as seen in a disposable hemocytometer under a microscope. The scale bar at the lower right is approximately 10 μm, some of the droplets can be seen to contain 2.8 μm solid particles.
