PCR Troubleshooting and Optimization Figure

PCR Troubleshooting and Optimization Edited by: Suzanne Kennedy and Nick Oswald
Published: 2011   ISBN: 978-1-904455-72-1
Price: GB £159 or US 0
An essential book for all scientists using PCR, real-time PCR, qPCR and related techniques. read more ...

Figure from: PCR Troubleshooting and Optimization

Full details of this book at PCR Troubleshooting and Optimization. More figures at PCR Figures.

PCR Troubleshooting and Optimization

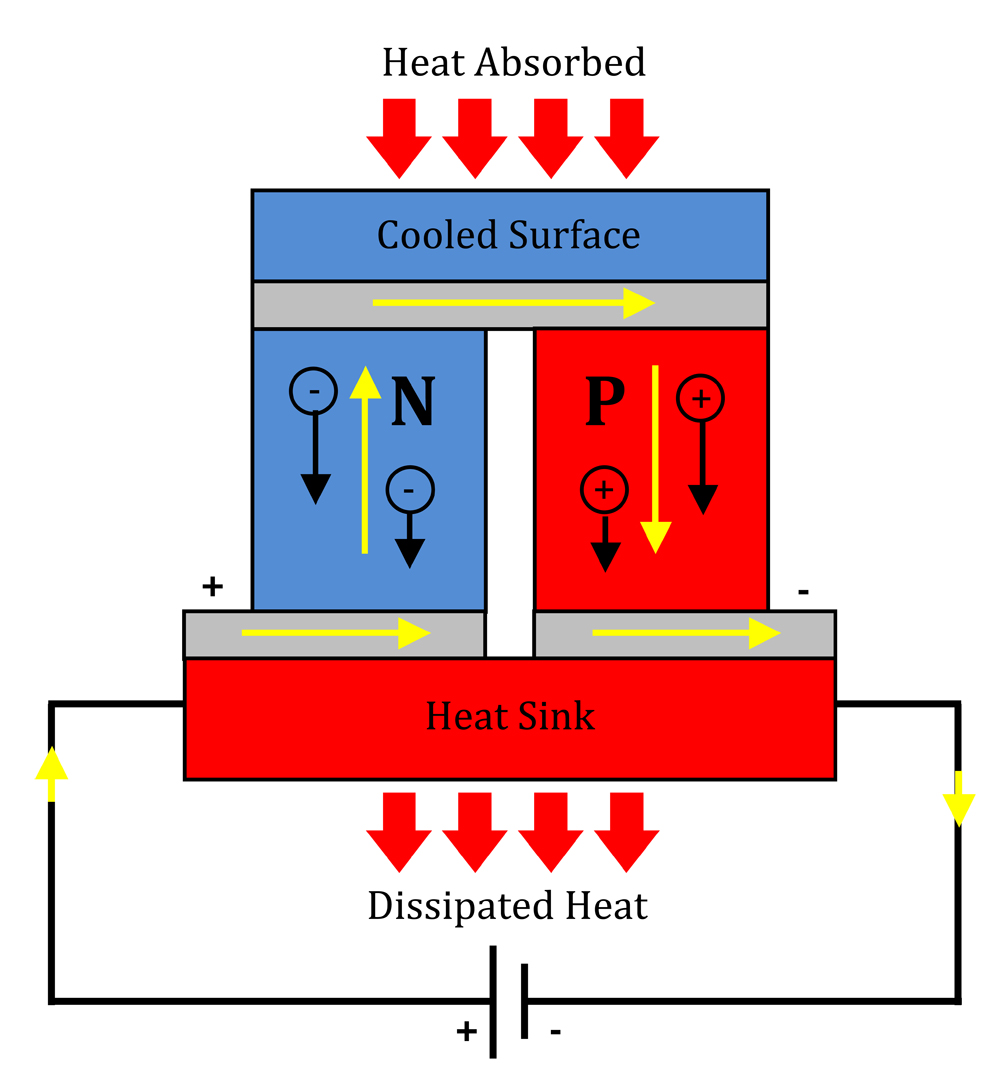

Chapter 6. Figure 1. The Peltier effect corresponds to the heat transfer from one end of a conductor to the other caused by the passage of an electrical current. When a voltage is applied across a semiconductor thermocouple, electrons in the N type material migrate towards the positive terminal. Similarly holes in the P type material migrate towards the negative terminal. The charge movement is accelerated thanks to an electric field (yellow arrows) created by applying a voltage between the terminals of the device and this result into heat being dissipated through a heat sink.

Further reading at PCR Troubleshooting and Optimization. More figures at PCR Figures.
